Quick Details

  • Type: Lithium Battery
  • Voltage: 48V
  • Capacity: 10 - 20Ah

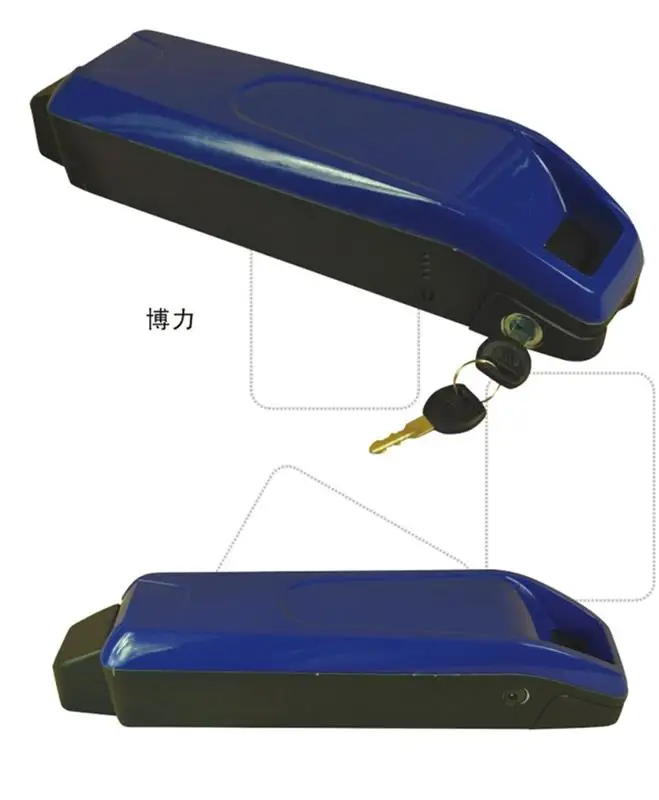

  • Product Name: 48V 14Ah battery for E-bike with NCR 18650GA cell
  • Warranty Time: 12 months
  • Battery cell: NCR18650GA 3.7V 3500mAh
  • Battery pack: 13S4P
  • Discharging cut-off voltage: 36V
  • Charging cut-off voltage: 54.6V
  • Weight: 4.3KG
  • Continuous discharge current: 1C
  • Peak discharge current: 3C
  • Color: White Black






Item



Parameters



Remark

Rated Capacity

Typical

14Ah

standard discharge(0.2C)

after standard charge

Minimum

13.8Ah

Alternating

Internal Resistance

≤50mΩ


Dimension 340*120*80mm
Warranty12 months
Application Mountain bike  Stealth bike
Nominal Voltage48V  mean operation voltage

Voltage at end of Discharge

35.75V

discharge cut-off voltage

Charging at end of Voltage

54.6V



Standard Charge

Constant Current 0.25C Constant

Voltage 4.20V 0.02C cut-off

charge time:Approx 4.5h

Standard Discharge

Constant Current 3C end Voltage 50V



Fast Charge

Constant Current 1C Constant

Voltage 4.20V 0.02C cut-off

charge time:Approx 1h

Fast Discharge

Constant Current 3C end Voltage 36V



Cycle Characteristic

2000times(100%DOD)

4000 times(80%DOD)

7000 times(50%DOD)

the residual capacity is no less

than 80% of rated capacity at 3C rate.

Maximum Continuous

 Discharge Current

1C

pulse discharge current: 3C

Operation Temperature Range

Charge:0~50℃

Discharge:-20~75℃

60±25%R.H. bare battery

Storage Temperature Range

Less than 1 year:-20~20℃

Less than 3 months:-20~60℃

60±25%R.H. at the shipment





Features&Application















Key Features

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4.Strong over-discharge resistance and charge retention

5.Strong charging acceptance and quick-charging capability  6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature  10.Excellent large current discharge performance especially in startup and climbing



Main Applications

(1)Power electric vehicles: electric bike, bicycle, scooter, motor, car

(2)Portable Devices: GPS,PDA, laptop, notebook

(3)Video Devices: LED flashlight, cordless phone ,camera, safety alarm

(4)Others: electric meter water Instrument, backup power







Related Products



















 We participate in a variety of trade fairs twice every year .On Electronics Show we discuss with customers

about our products and help them solve questions face to face.We have established contacts with many

potential buyers from other places as America, Australia, Belgium, Israel,Germany, the Netherlands,

Canada etc.





FAQ



 1. Q: What is minimal rated capacity?

 A: minimal rated capacity is the capacity on 0.2 C discharge till the voltage tapered to 2.0V shall be measured  after rested for 30min then finish standard charge.



 2. Q: What is internal impedance?

 A: Internal impedance is measured at AC 1KHz after 50% charge.



 3. Q: What is standard charge?

 A: Charging shall consist of charging at a 0.2 C constant current rate until the cell reaches 4.20V. The cell shall then be charged at constant voltage 0f 4.20 volts while tapering the charge current Charging shall be terminat  ed when the charging current has tapered to 0.02 C. Charge time:Approx 6.0h,The cell shall demonstrate no permanent degradation when charged between 0℃ and 45℃



 4. Q: What is standard discharge?

 A: Batteries shall be discharged at a constant current of 0.2 C to 3.0 volts @20℃±5℃.  If no otherwise specified, the rest time between Charge and Discharge amount to 30min.



 5. Q: What is overcharge?

 A: After normal charge, test the batteries’ initial state and capacity. Charge to 10.0V at 3C, then charge at CV  mode to 0.01C. Observe battery’s variation of appearance.



 6. Q:What is over discharge?

 A: After normal charge, test the batteries’ initial state. When the batteries are normal, Discharge to 0V at 0.5C.  Observe battery’s variation of appearance.



 7. Q: What is external short-circuit?

,A: After normal charge, test the batteries initial state, Keep the battery into explosion protection cover, short-  circuit the positive and negative terminals directly (general resistance shall be less than or equal to 50mΩ). Sto  p the test when the temperature falls to 10℃ lower than the peak value. Observe the variation of the batteries’  appearance and temperature.



8.Q:How are chargers selected?
A:Selecting principles of chargers is as below:
(1)Voltage should be regulated by the safest voltage of chargeable cell * n (make the Lithium iron phosphate    as 3.6 V and Ni- Co- Mn as 4.2 V);
(2)Current should be limited by the safe current of chargeable cell, and the customers’specific requirements also should be considered.
(3)If above 120W,chargers with aluminum alloy cooling fin or cooling fan will be suggested.
(4)If under 60W,chargers with plastic shell will be suggested.



Contact Right Now!









We offer varies of polymer lithium battery cells and packs according to your requirements. Warmly welcome your inquiry.
